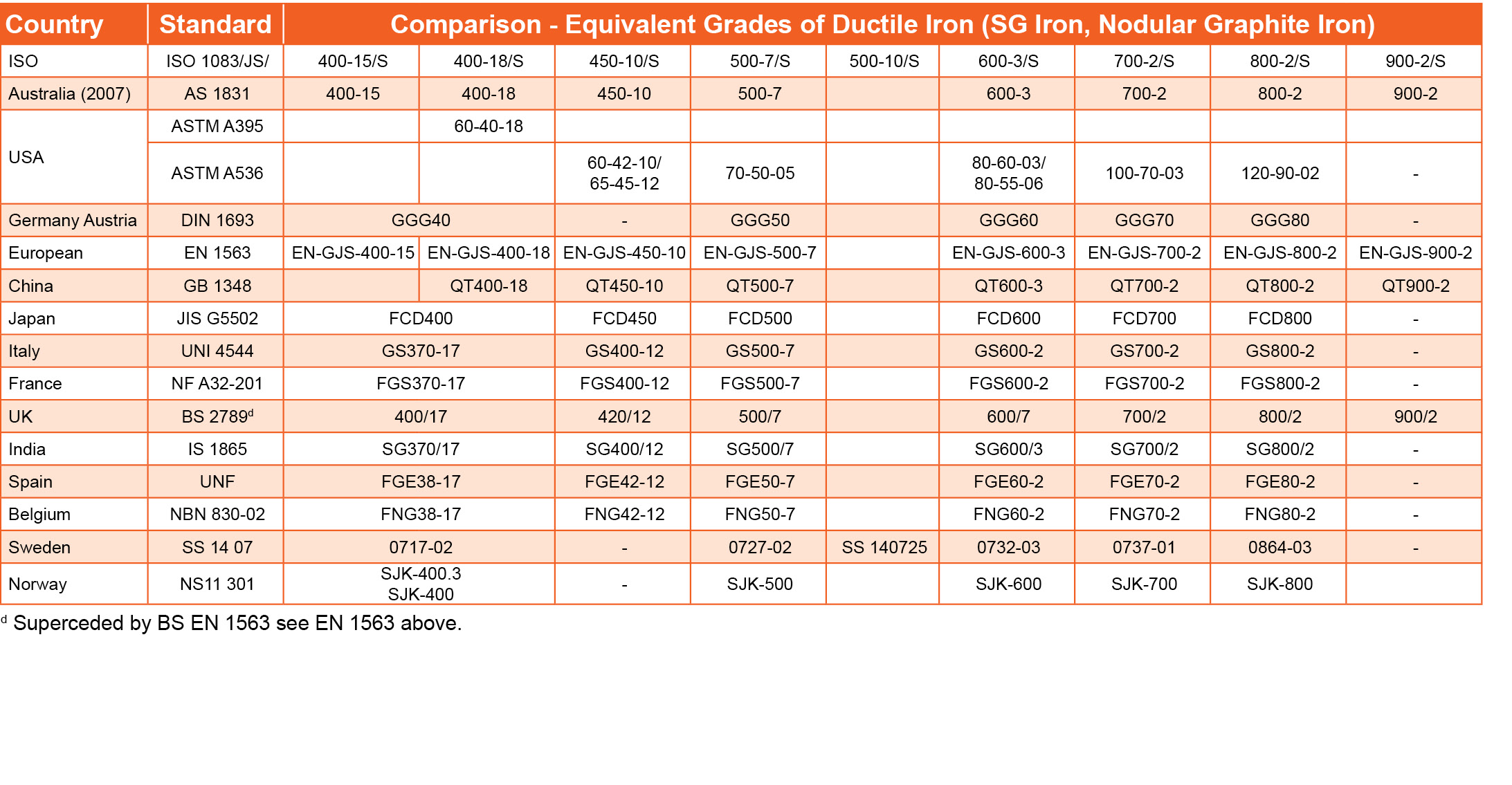

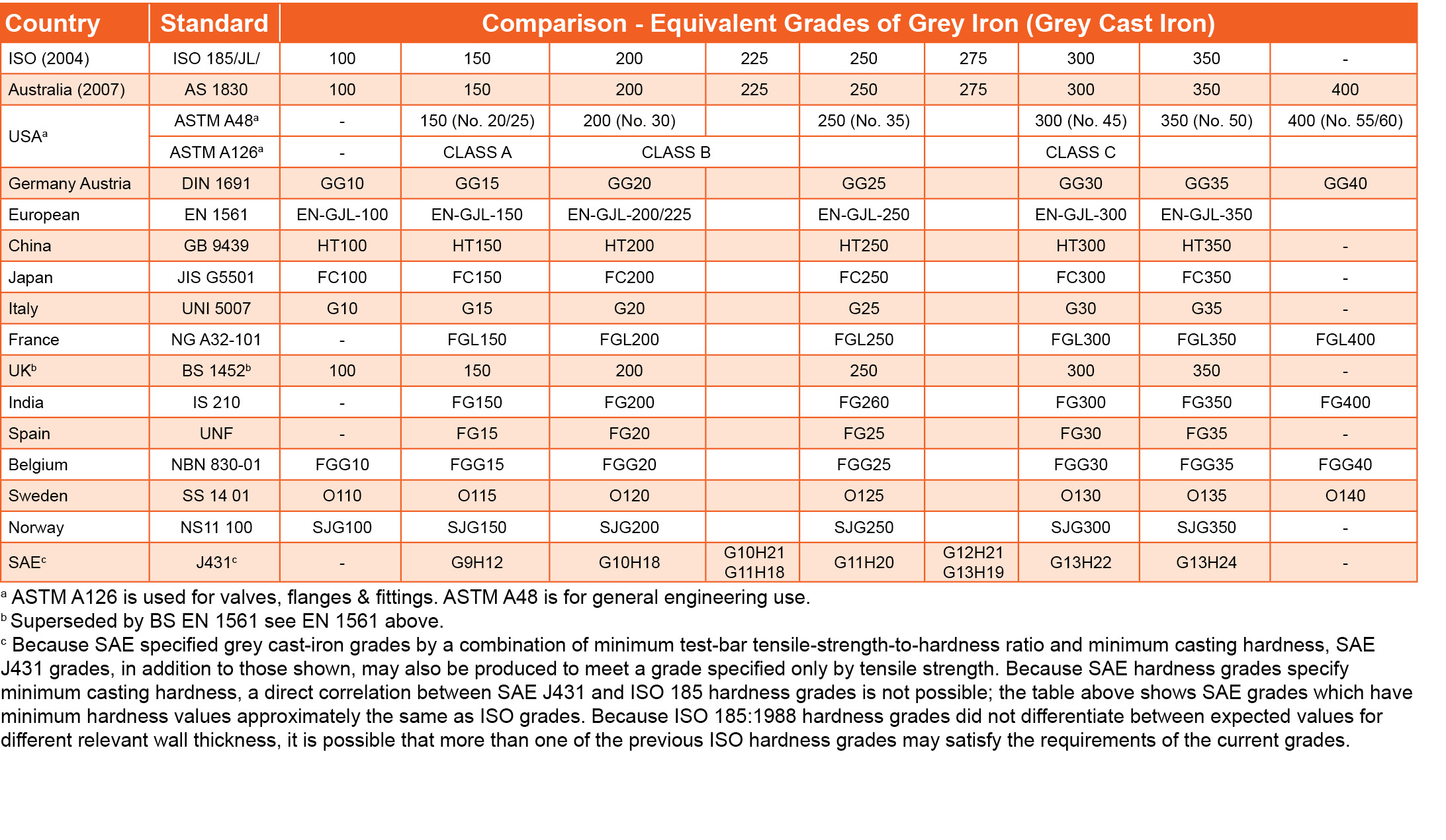

COMPARISON - EQUIVALENT GRADES OF GREY IRON, DUCTILE IRON, SG IRON & NODULAR GRAPHITE IRON

This is a comparison table for the grey iron and ductile iron grades of various standards showing equivalents, including A5, EN, BS, ISO, ASTM, DIN, JIS, UNI, NF, IS, UNF, NBN, AS, SS & NS.

Australian Pipeline Valve manufactures a large range of cast iron & ductile iron valves including: -

• Ball valves - soft seat
• Swing check valves - metal & soft seat
• Gate valves - metal seat
• Globe valves - metal seat
• Style N & NX Check valves - NBR/Buna seat
• Style KB & A straight through and Weir Diaphragm valves
• Dual flap wafer check valves - metal & soft seat

Design
MSS SP-701-1, MSS SP-128, MSS SP-85, API 594, AS 3574, AS 2038, AS 2638.1, BSEN 1171 (BS5163), BSEN 13789 (BS5152).

Types
Gate: - Inside screw & yoke, solid wedge, bolted bonnet, non-rising stem, rising stem outside screw, Swing check, Globe.

Flanging/Pressure Class
ANSI B16.1 125LB, 150LB, 250LB
ANSI B16.42, 150LB, 250LB
AS 2129 Table D, E, F, H
AS 4087 PN14, PN16, PN21, PN35
AS 4331.1 PN10, PN16
EN 1092-2, PN10, PN16
ISO 7005-1, PN10, PN16

Face to Face Dimensions
EN 1171 (BS 5163), ASME B16.10, AS 2638.1, EN 558-1, MSS SP-70
