Single-seated Control Valve
APV single seated control valves have a top guiding structure. The valve body which provides a lower pressure loss, larger flow capacity, wider control range offers a better performance in resistance to vibration. Valves are usually equipped with a diaphragm actuator.
Size: 3/4" ~ 12" (DN20 ~ DN300)
Pressure rating: ASME Class 150 ~ 2500 (PN16 ~ PN420)
Body material: Carbon steel, stainless steel, alloy steel, duplex stainless steel
Operation: PDL series pneumatic actuator, PCL series cylinder actuator, electric actuator

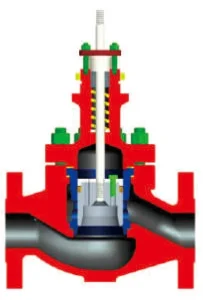

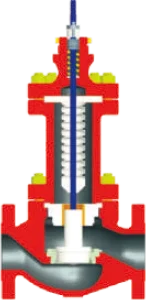

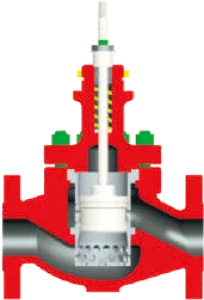

| APKA-10C/D Series | APKA-10C/K Series | APKA-14S Series |
| Low Leakage Cage Control Valves | Low Noise Cage Control Valves | Bellows Seal Single-Seated Control Valves |
| Applications | ||
| Widely used in high pressure, high pressure drop processing lines, and the environments where strict sealing is required. | Applicable to compressible liquids such as vapor, air and natural gas. Especially suitable for high temperature, high pressure or high pressure drop processing lines | Applicable to poisonous or high-volatility mediums and vacuum environment. Effectively preventing pollution and explosion accidents. |
| Structure Features | ||
| Cage structure and top guided, pressure-balanced plug. Spring loaded sealing ring enhances shutoff class. | Cage double seated seal, large guiding area in plug and cage ensures stable operation, cage with many small holes eliminates erosion caused by cavitation, body is equipped with diversion wing. | Applicable to poisonous or high-volatility mediums and vacuum environment. Effectively preventing pollution and explosion accidents. |
| Applications | ||
| DN 40 ~ 200 NPS 1-1/2” ~ 8” | DN 40 ~ 200 NPS 1-1/2” ~ 8” | DN 25 ~ 200 NPS 1” ~ 8” |
| Ratings | ||
| PN 16, 40, 100 ANSI 150,300,600, 900, 1500 | PN 16, 40, 100 ANSI 150,300,600, 900, 1500 | PN 16, 40, 100 ANSI 150,300,600, 900, 1500 |
| End Connections | ||
| Flanged: FF, RF, RJ, FM | Flanged: FF, RF, RJ, FM | Flanged: FF, RF, RJ, FM |
| Standards: ASME B16.5, JIS B 2201, GB / T 9113 | Standards: ASME B16.5, JIS B 2201, GB / T 9113 | Standards: ASME B16.5, JIS B 2201, GB / T 9113 |
| Welded: SW ( ≤50) BW (≥65) | Welded: SW ( ≤50) BW (≥65) | Welded: SW ( ≤50) BW (≥65) |
| Standards: ASME B16.11, ASME B16.25 | Standards: ASME B16.11, ASME B16.25 | Standards: ASME B16.11, ASME B16.25 |
| Body Materials | ||
| Alloy steel, stainless steel, steel | Alloy steel, stainless steel, steel | Alloy steel, stainless steel, steel |
| Plug and Seat Materials | ||
| Plug: 316, 316L, 304+STL, 316+STL, 17-4PH | Plug: 316, 316L, 316+STL, 304+STL, 17-4PH | Plug: 304, 316, 304L, 316L, 316+STL, 304+STL |
| Seat: 316, 316L, 17-4PH, PTFE | Seat: 316,316L,17-4PH | Seat: 304, 316, 304L, 316L, 304+STL, 316+STL, PTFE |
| Flow Characteristics and Maximum Flow Coefficients | ||
| Equal percentage or linear | Close to linear | Flow - Open: equal percentage or linear |
| Cv value: 11 to 850 | Cv value: 11 to 580 | Cv value: 11 to 850 |
| Shutoff Class (ASME B16.104) | ||
| Soft seat: Class VI Metal seat: Class IV | Class III | Soft seat: Class VI Metal seat : Class IV |
| Structure Features | ||
| HA or VA 6 pneumatic actuators and 3610L electronic electric actuators | HA or VA 6 pneumatic actuators and 3610L electronic electric actuators | HA or VA 6 pneumatic actuators and 3610L electronic electric actuators |
